Modélisme et impression 3D - Scale Models and 3D printing



Tutorial

Our models, except the Fullcolor models, have to be painted. The painting of our models is done without difficulty even by a novice modeler. It takes as much time as mounting a plastic injected kit for a more satisfactory result.

The house of the Cevennes Village in N

The PLM train station in N


City house in O :

Used material :

  • Matte khaki Humbrol Enamel paint
  • Matte light beige acrylic paint
  • Matte brown acrylic paint
  • Matte gray acrylic paint
  • Satin green acrylic paint
  • Matte red acrylic paint
  • Matte white acrylic paint
  • Matte orange acrylic paint
  • Matte beige acrylic paint
  • Satin dark gray acrylic paint
  • Matte yellow acrylic paint
  • Matte navy blue acrylic paint
  • Large paintbrush (10-15 mm wide) with wirehaired
  • Fine paintbrush (5 mm wide)
  • Thin paintbrush (2 mm wide)
  • Paint palette
  • Sponge kitchen and water pan
  • Craft knife
  • Scissors
  • Abrasive paper
  • Gel cyanoacrylate glue (Super Glue 3 gel)
  • Gel glue (UHU gel glue)
  • Transparent plastic sheet
  • Matte printer paper 160 g/m2
  • Stone plate Redutex R087PL121
  • Slate plate Redutex R043PC112

The kit consists of parts in Fritted polyamide and Acrylic polymer.

The parts Fritted polyamide are combined into a single cluster.


A primer is painted with a brush to the whole kit.

The Fritted polyamide is covered with a thick acrylic paint beige light color. Clean the remaining deposits powder before painting.

The Acrylic polymer receives khaki Humbrol Enamel. Never use acrylic paint for a first layer on this material.


Then we pass to the first coat of paint. Only water acrylic paints are used here:

- brown on the doorframes.
- Gray on zinc elements
- Green on the shop (the door is glued on).
- Red on the ridge tiles
- Red for bricks + white juice after drying to mark the joints.

The technique of painting juice is quite simple. On the paint palette, diluted some paint with water. And then applied on the surface. The excess is blotted immediately with a dry brush or with a damp sponge.


After a few hours we can pass to the second coat of paint:

- Brown juice at the store for the dirtying.
- White on framing stones.
- Beige and white stamping on the stone floor (door footstep + shop footstep)
- White on chimney + orange on the chimney tubes after drying.


After drying of the second layer, the third layer of paint give the final patina to the differents items:

- Dark gray juice on all the pieces of masonry.
- White juice on brown frames and shop.


After complete drying, we print the pattern and positioning the various parts.

Cluster parts were gradually detached during the painting phase.


The pattern is cut according to the desired plan.

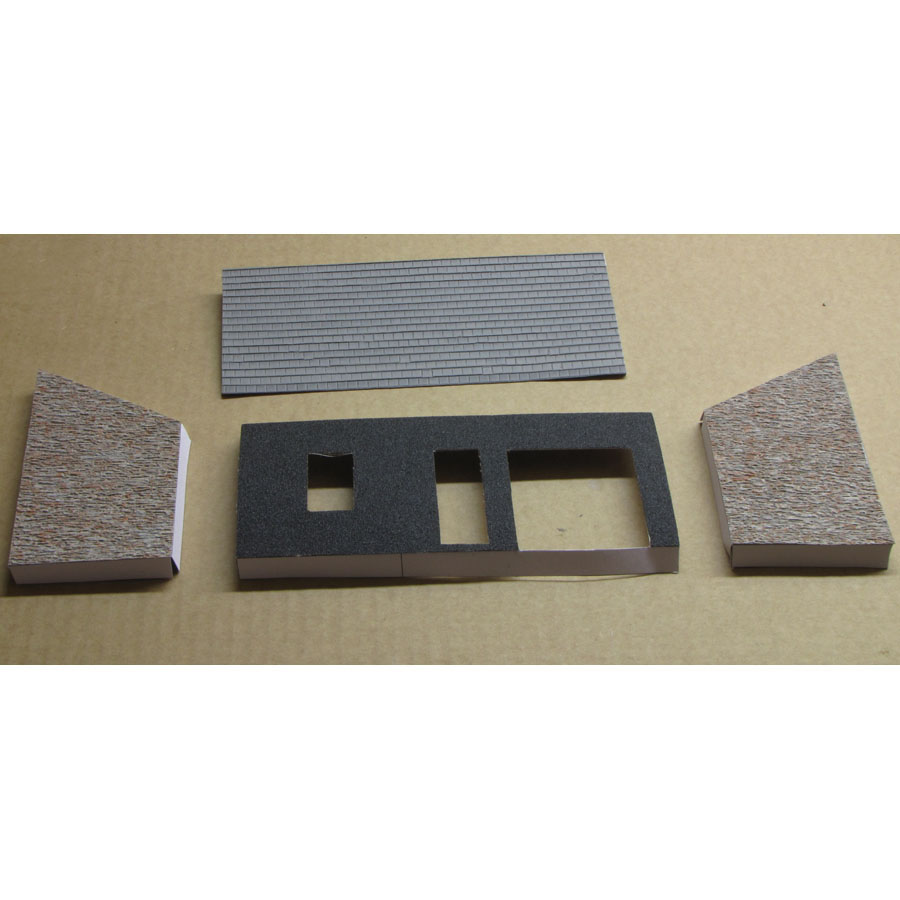

Decoration and reinforcement fo the patterns: the decorative plates are first glued to the patterns before being cut to size.

We have :
- Redutex stone on gable.
- Redutex slate on roof.
- Sandpaper on the facade.

Depending on the size of the building, it may be necessary to add an additional layer of card paper to reinforce the structure.


Surface painting:

- Navy blue juice and dark gray juice on the roof.
- Dark gray juice at the base of the gable.
- Beige on facade (2 layers) and yellow juice after drying and after drying a new dark gray juice.


Gluing of the window frames and door. Then glue the cornice.

Glue used alternately depending on the size of the surfaces: UHU gel glue for large surfaces, the Super Glue 3 gel for small areas.


Gluing of the galbes.

Roof and angles gluing .

Gluing of all the last details. the glass of the shop is glued before gluing the shop.

The glass of the door and window is glued after gluing them.


Gluing the curtains and the back of the shop (printed paper).

Gluing the background of the house: a simple white thick paper.

The house is complete.
